eegomylab

High-Definition EEG for Advanced Neuroscience

​​Contact Us

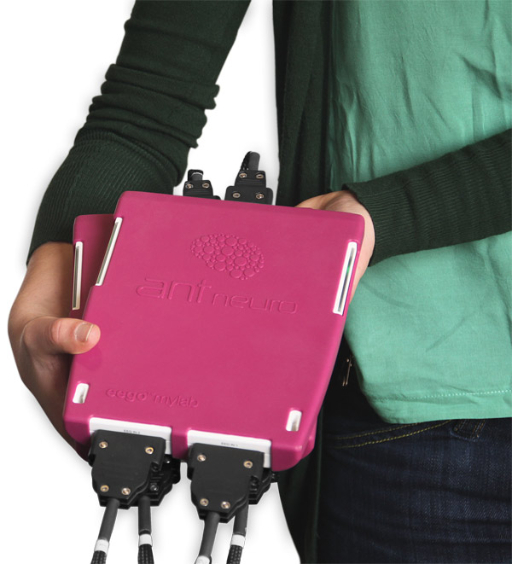

A research-grade, high-density EEG system designed for lab-based and clinical neuroscience. The next-generation eego™ amplifier combined with waveguard™ caps and intuitive software offers the precision and flexibility required for the most demanding multimodal experiments.​​

Record. Analyze. Understand.


Why Choose eego mylab

Built for Precision

Active shielding, high input impedance and CMRR, and up to 24-bit resolution ensure clean, reliable EEG data

High Temporal Resolution

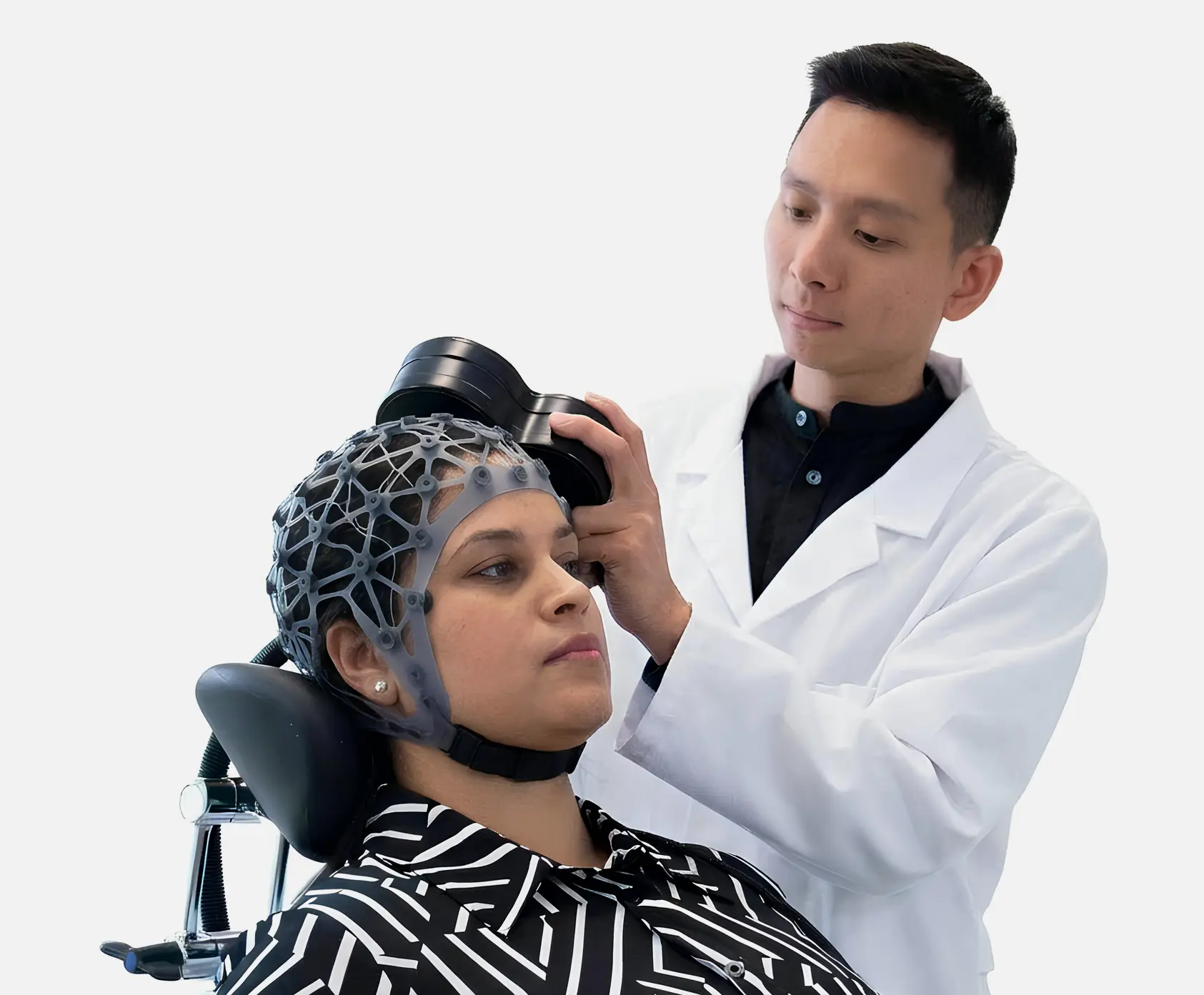

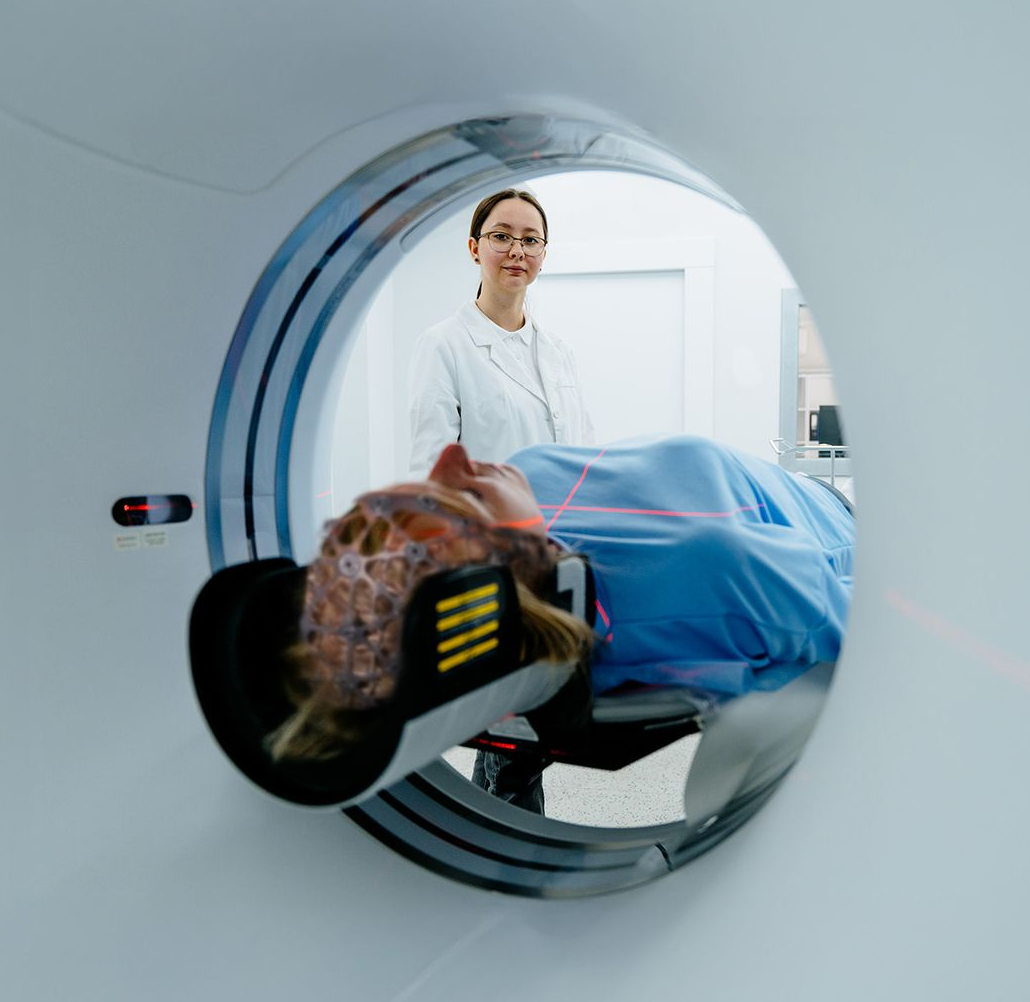

Sampling up to 16 kHz captures fast neural events and external artefacts — from TMS pulses to MR gradient artefacts

Accurate
Post-Processing

High-rate acquisition enables precise artefact characterization for advanced analysis workflows

Multimodal-Ready

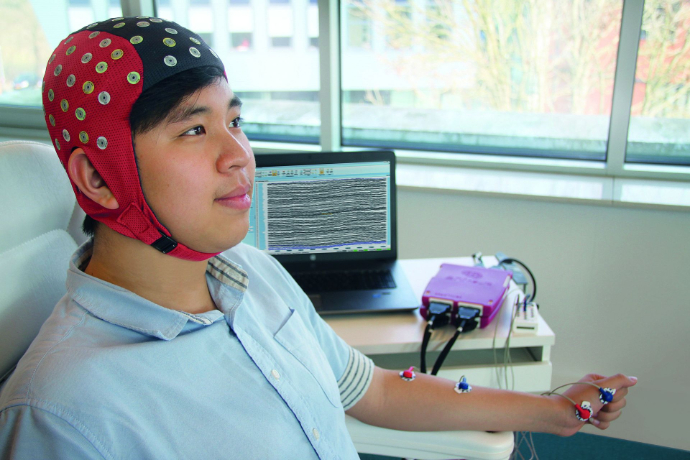

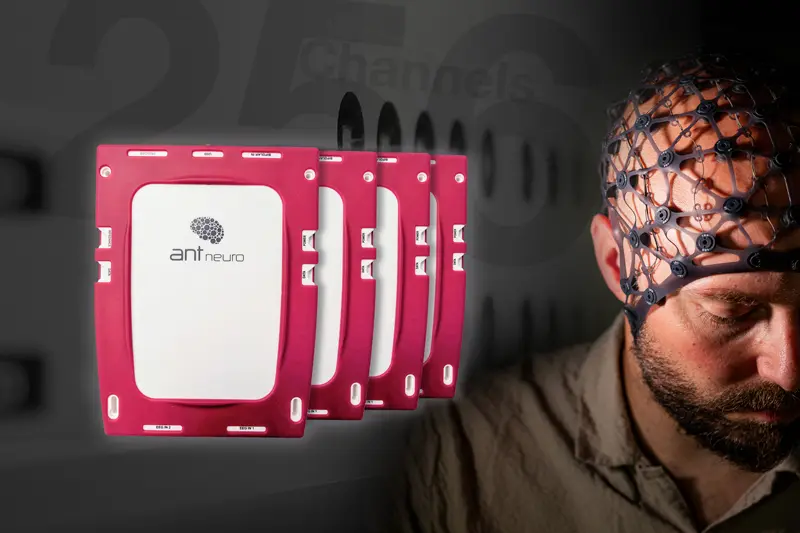

Supports up to 256 EEG channels plus 24 bipolar inputs for ExG, respiration, GSR, accelerometer, temperature, SpO₂, and dedicated polysomnographic sensors

Comprehensive Sensor Compatibility

Easily integrates additional physiological sensors for full multimodal research setups

Effortless Workflow

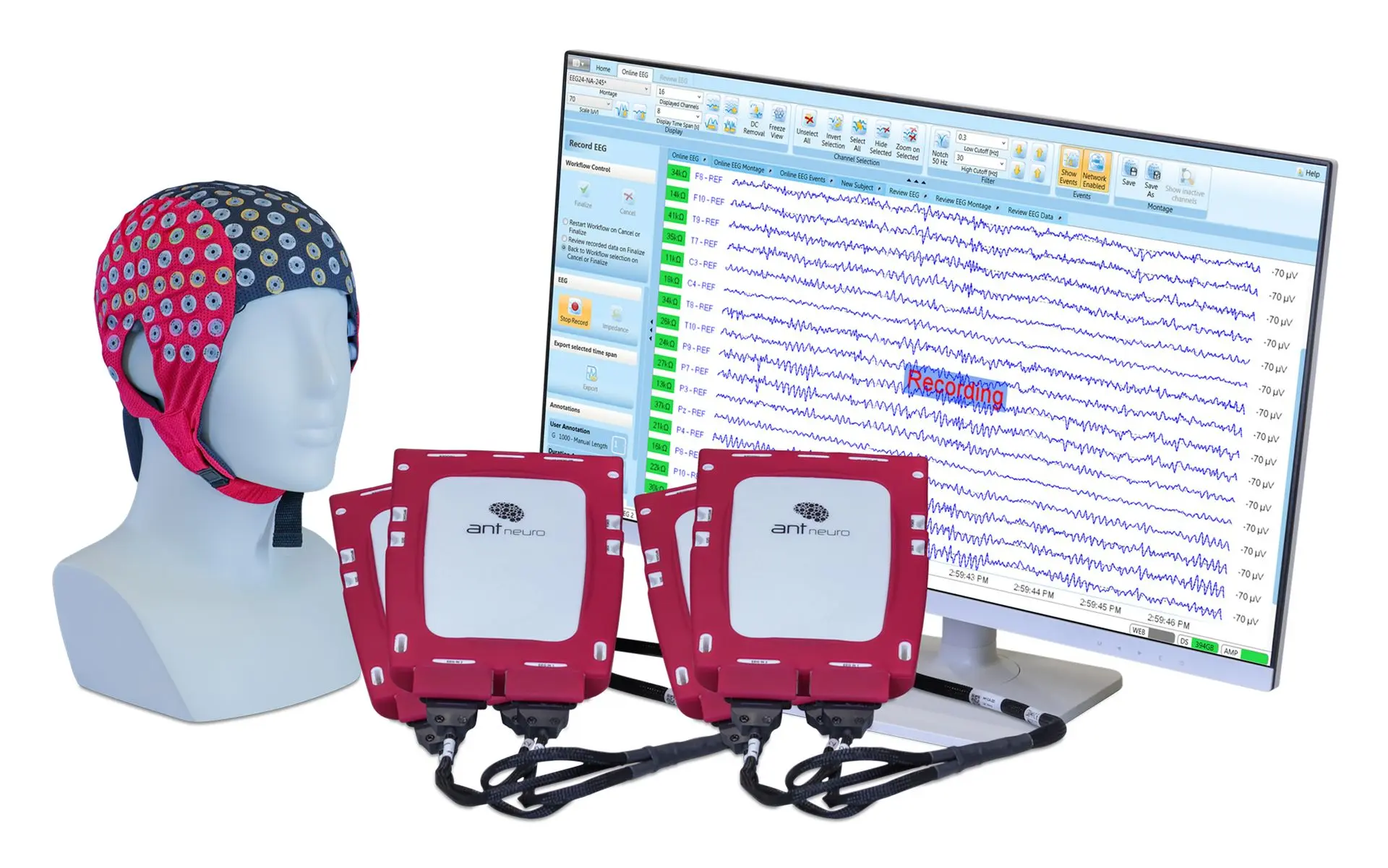

eego™ software streamlines setup, impedance checks, monitoring, synchronized video, multimodal sync, and data export

Optional Hardware Integration

Expand workflows with PTZ camera and photic flash options for enhanced experimental control

Uninterrupted Recording

Internal battery and USB-C power ensure stable, long-duration data acquisition

Precise Synchronization

8-bit TTL triggers and LSL support enable accurate timing and seamless integration with external devices and event systems

Medical-Grade

A CE-marked, FDA-cleared system built for safety, reliability, and high-performance in laboratory and clinical research

Showcases​

EEG hyperscanning

Enabling the investigation of peak performance and high-performing teams.

Read More

The ANNOTem project

Using teleneurology and dry EEG to improve neurological care.

Read More

Expedition Neuron

Neuroscience in the Brazilian and Peruvian Amazon.

Read More

Enhanced Features

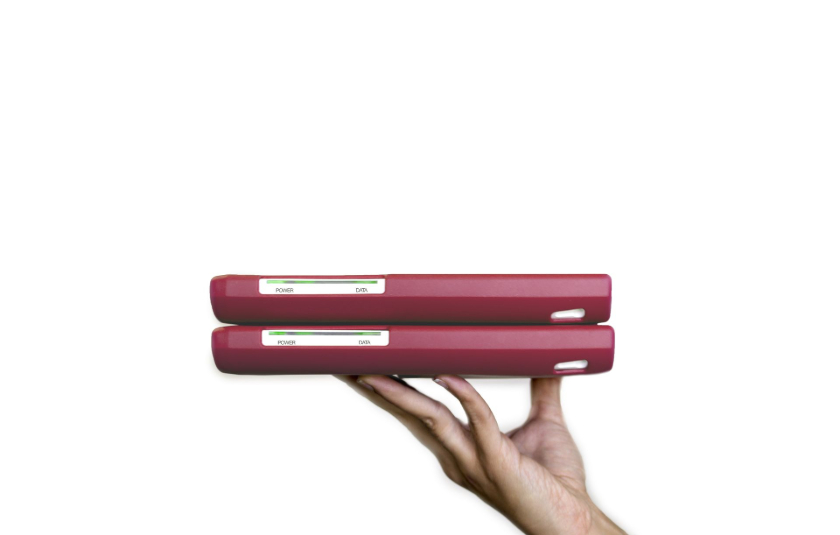

Dimensions: 206x157x25 mm
Weight: 600 grams

Input Impedance: > 1 GΩ
Max Sampling Rate: 16,384 Hz across all referential channels
Resolution: Up to 24 bit

Trigger Input: 8-bit TTL
USB Interface: USB-C 3.0, electrically separated

Power: Integrated battery + USB power
Operation Time: Up to 5h in battery mode,
extendable with USB-power

Warranty (Amplifier): 2 years

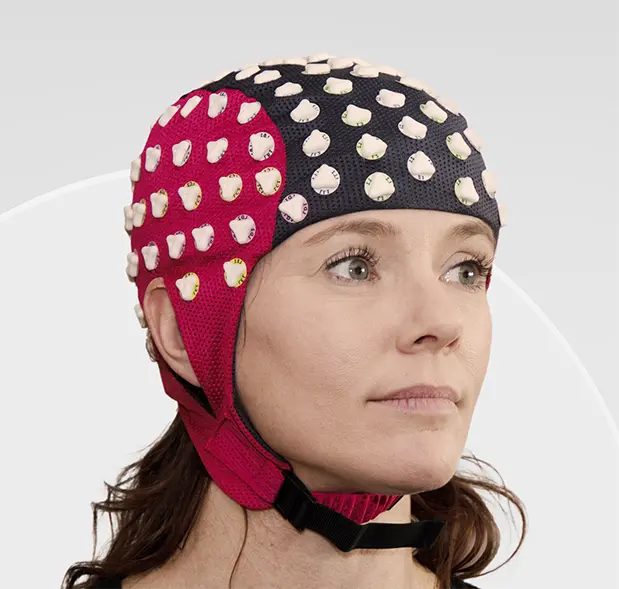

Warranty (waveguard™ caps):
1 year

Do you have questions or need an offer?​

eego™ amplifier is CE marked as medical device (CE Class IIa) under MDR (EU)  2017/745, has FDA clearance under 510(k) in the USA, Medical Device License (MDL) issued by Health Canada and is registered in the ARTG (371419) in compliance with the Australian TG(MD)R.

Manufactured by eemagine Medical Imaging Solutions GmbH, Berlin, Germany, ISO 13485 certified. ANT Neuro and eemagine are part of the neuromotion group.

For more information about eego amplifier and the regulatory status in your country, contact us at [email protected] .
