eegohub

Fully integrated standardised HD EEG solution

​​Contact Us

eego hub system offers an all-in-one standardized high-density EEG recording solution and makes High-Density EEG recordings a breeze, even for demanding research applications.

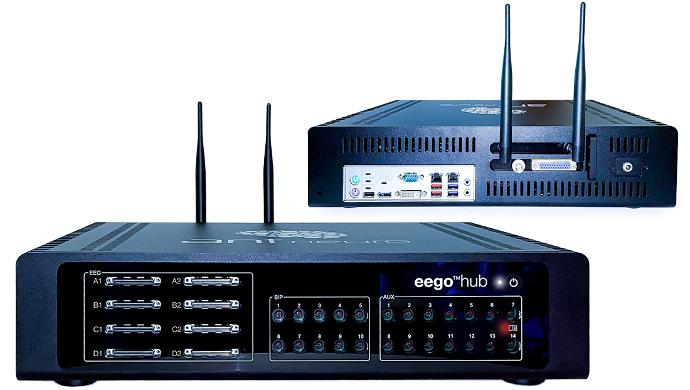

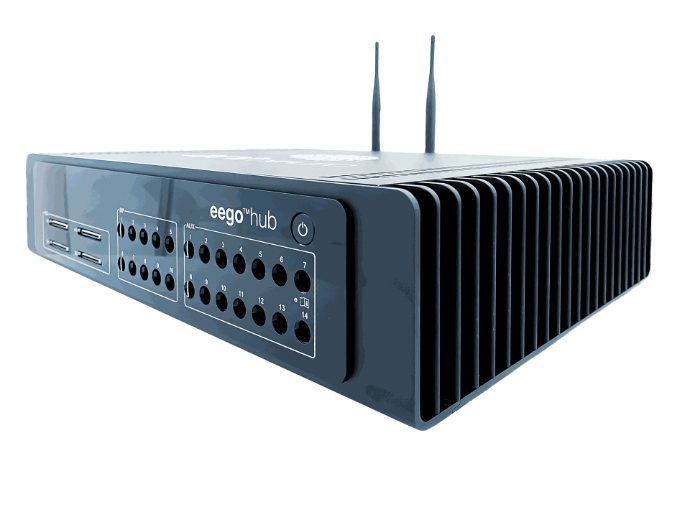

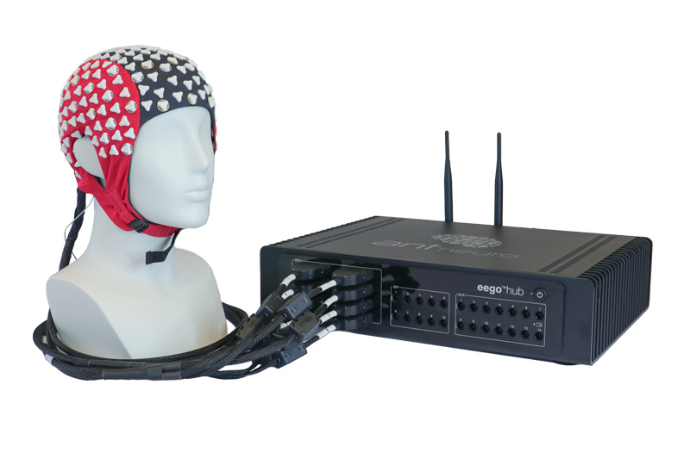

eego hub is a plug-and-play solution that is designed for stationary use.  The system is fully compatible with the full range of waveguard caps and nets and provides direct access to 10 bipolar and 14 auxiliary channels, 7-bit trigger communication as well as HD video recording. All of these are in one system without the need for additional extensions.


Why Choose eego hub

High-Density EEG

Standardized stationary HD-EEG solution with 128 or 256 EEG channels

High Sampling Rate

Uncompromised EEG with up to 16 kHz sampling rate

Integrated PC

In-built high-performance PC with recording and review software

Additional Channel Inputs

Input for additional 10 bipolar and 14 auxiliary channels

Sensor Compatibility

Compatibility for ExG, auxiliary sensors such as accelerometers, video, and SpO2

Superior Signal Quality

Excellent EEG signal quality through active shielding and high input impedance

ERP Trigger Input

Dedicated 7-bit TTL trigger input for ERP studies and real-time synchronization with external devices

ERP-Ready Hardware

In-built dedicated hardware to run ERP studies

Enhanced Features

Dimensions: 440 x 320 x 110 mm
Weight: 8000 grams

Input Impedance: > 1 GΩ
Max Sampling Rate: 16,384 Hz
Resolution: 24-bit, true DC input for all channels, one A/D converter per channel

Trigger Input: 7-bit TTL, electrically separated from EEG inputs

Warranty: 2 years

Do you have questions or need an offer?​
