eego™8

Small package – powerful solutions

​​Contact Us

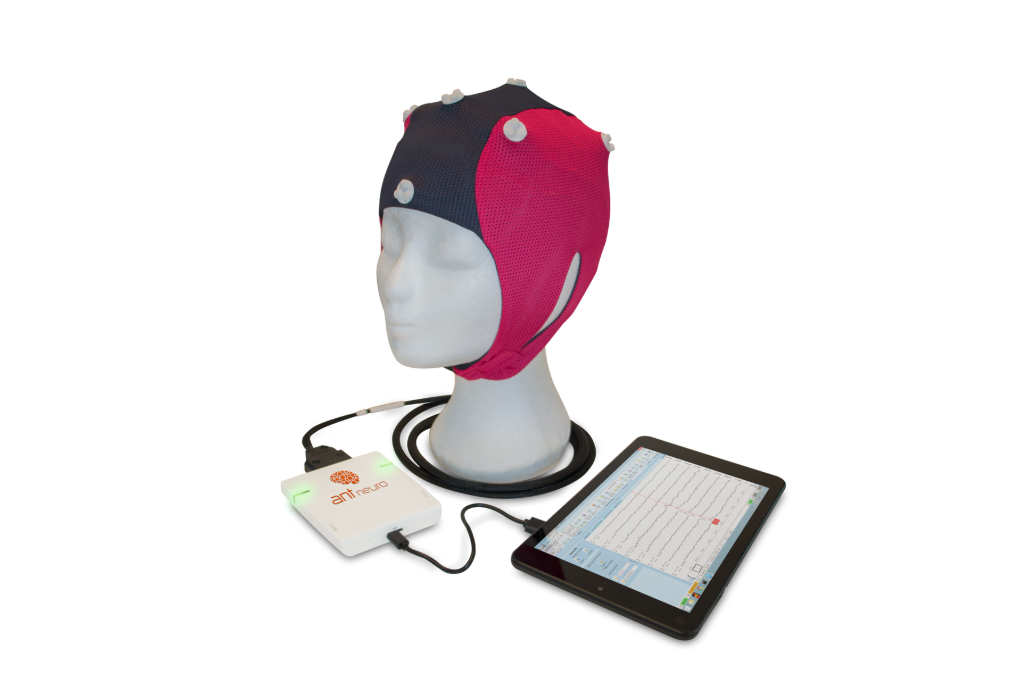

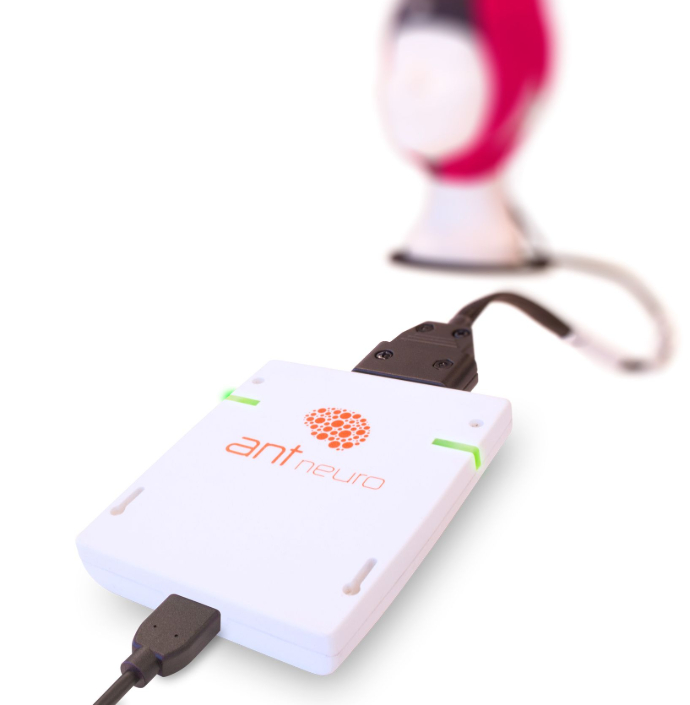

eego 8 amplifier delivers research-grade EEG, EMG, ECG, or EOG data in a compact, portable form. Fully compatible with the waveguard™ touch dry electrode cap, eego 8 offers high-quality data collection on the go, ideal for real-time applications like BCI, neurofeedback, and Mobile Brain Imaging (MoBI).


Why Choose eego 8

Ultra-Portable

Our smallest, lightest amplifier, perfect for mobile, real-time EEG/EMG recordings

Active Shielding

Reduces environmental interference for outstanding signal quality in any environment

Flexible Cap Options

Compatible with both dry and gel-based EEG caps for quick and easy setup

Real-Time Data

Medically certified SDK for real-time access, ideal for BCI and neurofeedback applications

Cost-Effective

Affordable solution with no compromise on research-grade quality



Trigger Inputs

Equipped with two sample-precise trigger inputs for accurate event recording

Enhanced Features

Dimensions: 86 x 100 x 16 mm
Weight: < 100 grams

Input Impedance: > 1GΩ
Max Sampling Rate: Up to 2,048 Hz
Resolution: 24 bit

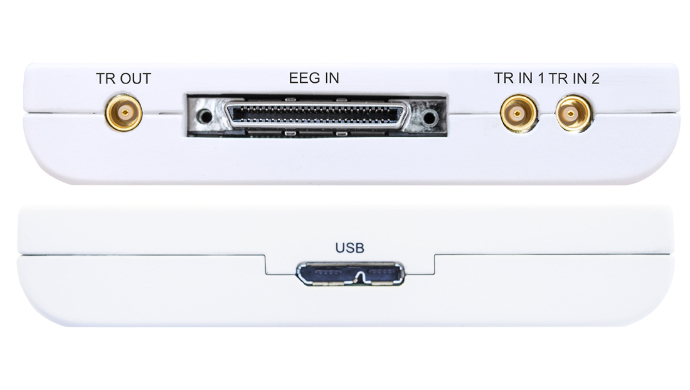

Trigger Input: 2-bit TTL
Channels: 8 referential or bipolar actively shielded channels; separate reference and patient ground
USB Interface: USB, electrically separated

Battery:
Not integrated (8 channels)
Integrated (24, 32, 64 channels)
Operation Time (Battery Mode): Up to 5 hrs

Do you have questions or need an offer?​

DISCLAIMER: eego™ amplifier is CE marked medical device (CE Class IIa) under MDR (EU) 2017/745, has FDA clearance under 510(k) in the USA, Medical Device License (MDL) issued by Health Canada and is registered in the ARTG in compliance with the Australian TG(MD)R. Manufactured by eemagine Medical Imaging Solutions GmbH, Berlin, Germany, ISO 13485 certified. ANT Neuro and eemagine are part of the neuromotion group. For more information about eego amplifier and the regulatory status in your country, contact us at [email protected] .
